AIM P7 Ozone Generator

Engineered with advanced PlasmaBlock® technology, the AIM P7 delivers a new standard in ozone generation—combining efficiency, safety, and environmental responsibility. By utilizing specialized plasma reactors and electrode systems, this unit produces ozone with greater precision and consistency, optimizing both output and reliability. Quiet, dependable, and built for demanding conditions, it is well-suited for a wide range of high-pressure applications.



The AIM P7 is configured to generate 3-7 grams of ozone per hour under normal operation. To achieve concentrations exceeding 2% by weight, the system requires a high-purity oxygen feed and proper back pressure. For peak performance, the generator must be paired with a positive-pressure air preparation system and maintained at a minimum back pressure of 5 psi.



Download IconAIM P7 Ozone Generator Sales Sheet



FEATURES:

-Completely modular unit, with little user maintenance

-Automatic air flow shut-off switch to ensure a positive pressure

-Failsafe shut off

-Overvoltage/current shutdown

-Air-cooled performance

-LED alarm enunciation

-Powder-coated aluminum chassis

-Dual voltage

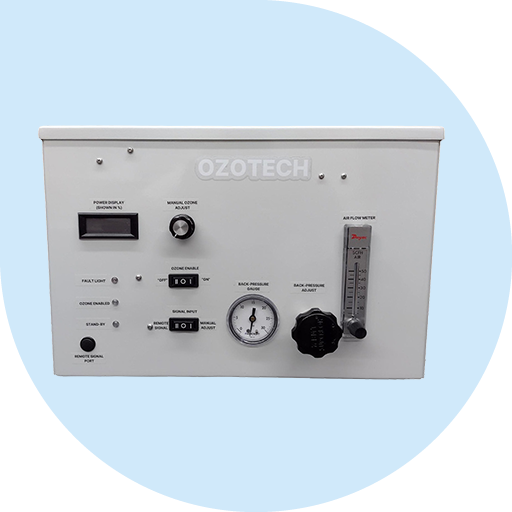

Ozotech-Water-Drop_AIMP7

ENHANCED OZONE OUTPUT & EFFICIENCY
PlasmaBlock® technology within AIM P Series products allows for the production of ozone at higher concentrations, meaning that you can generate more ozone with the same input power, making the process more energy-efficient.



HIGH OZONE PURITY
Produce high-purity ozone, which is important for many applications. The generated ozone is typically free from contaminants and impurities, ensuring the ozone’s effectiveness.



CONSISTENT OZONE PRODUCTION

Delivers a more consistent ozone production rate and concentration over time. This is important for applications where a stable and reliable ozone supply is required.



PLASMAVIEW® DIAGNOSTICS

Connect your AIM P30 or AIM P50 PlasmaBlock® with the PlasmaView® or PlasmaLink® software. Monitor, troubleshoot, collect, store, and analyze performance data from local or remote locations.

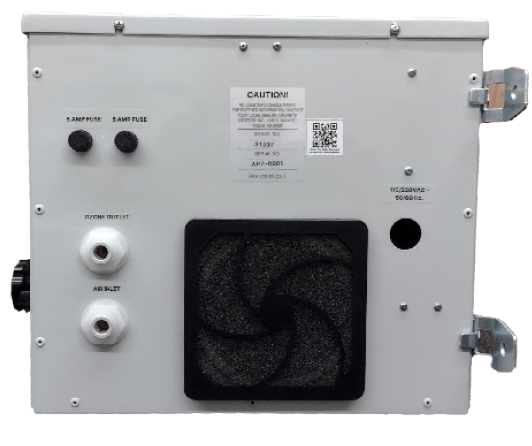

Side View
Side View

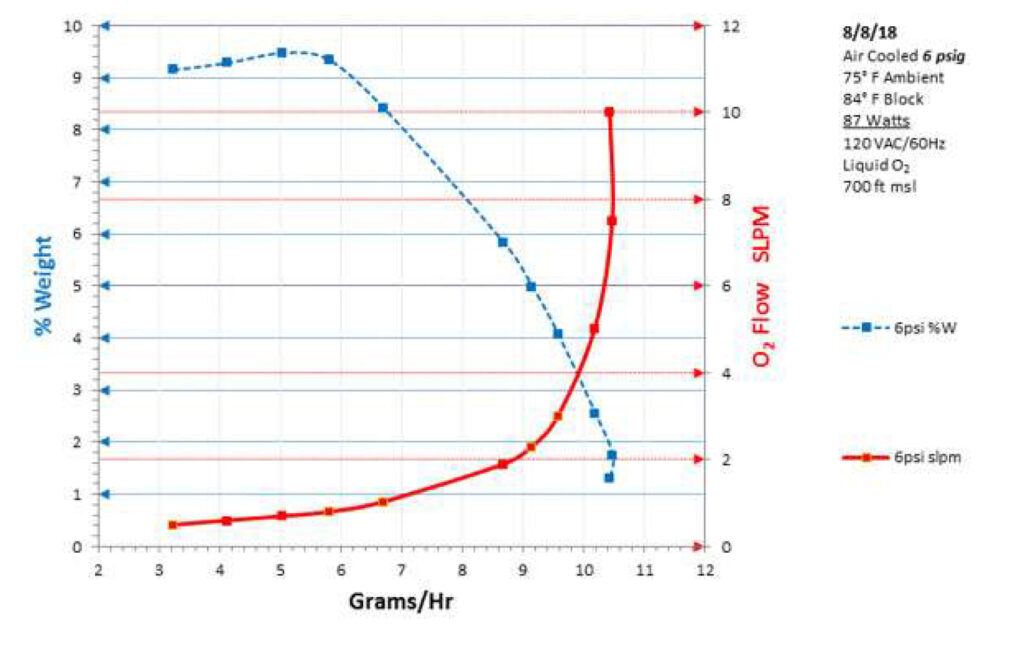

Microsoft Word - AIM P7 - 6 psi graph

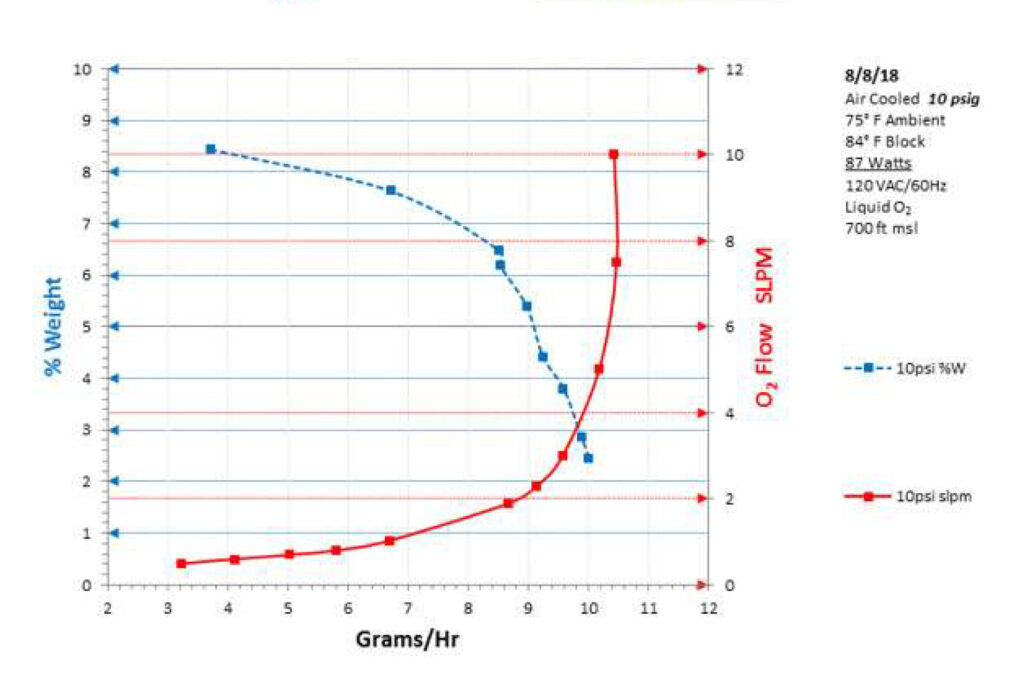

Microsoft Word - AIM P7 - 10 psi graph

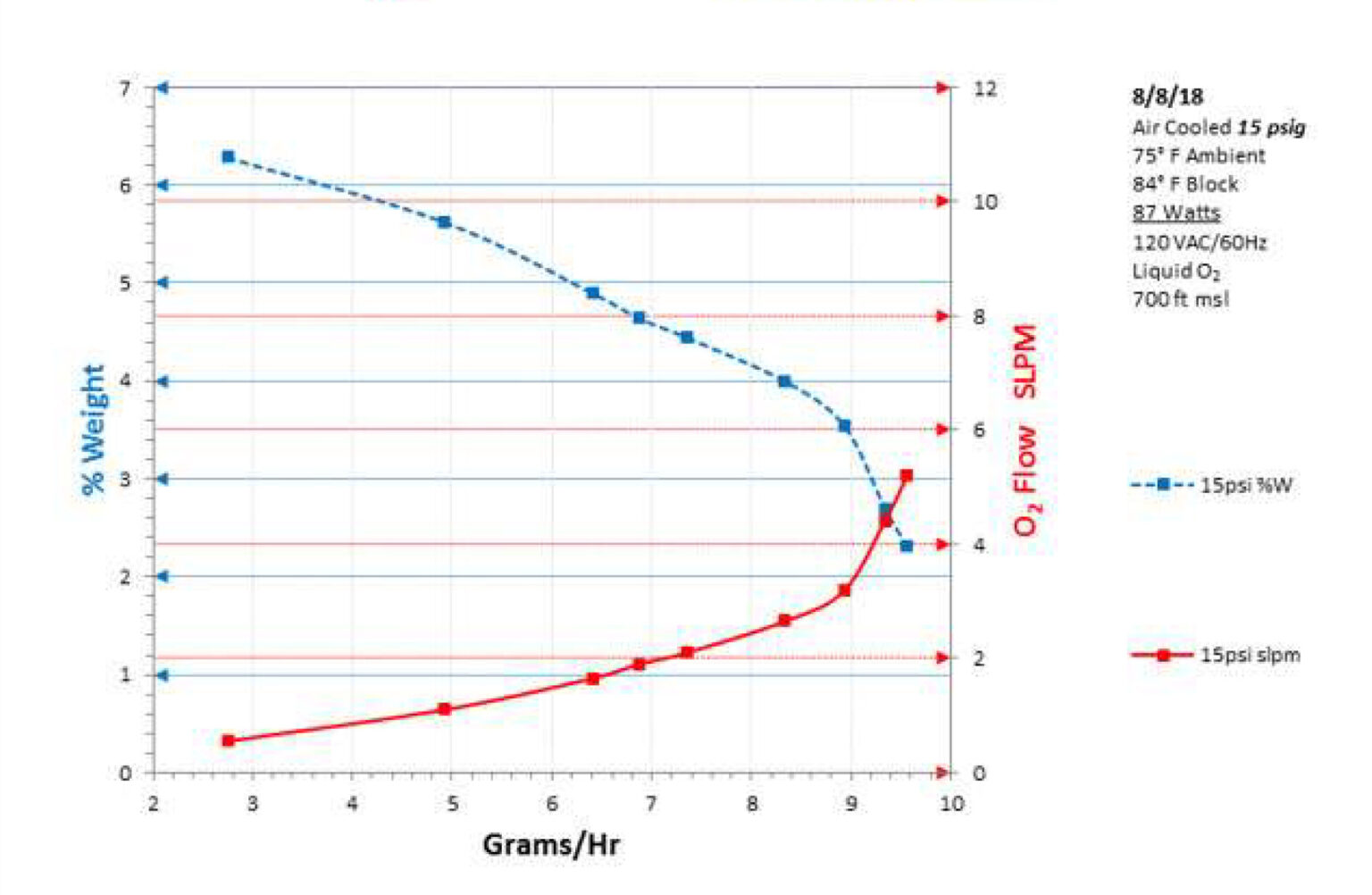

Microsoft Word - AIM P7 - 15 psi graph
SPECIFICATIONS
ModelOzone OutputOperating VoltagePower ConsumptionDimensions
AIM P307 g/hr115/230 Vac, 50/60 HzStandby Mode: 27 Watts
Ozone Enabled Mode: 125 Watts		19.5” x 10.8” x 12.7”
